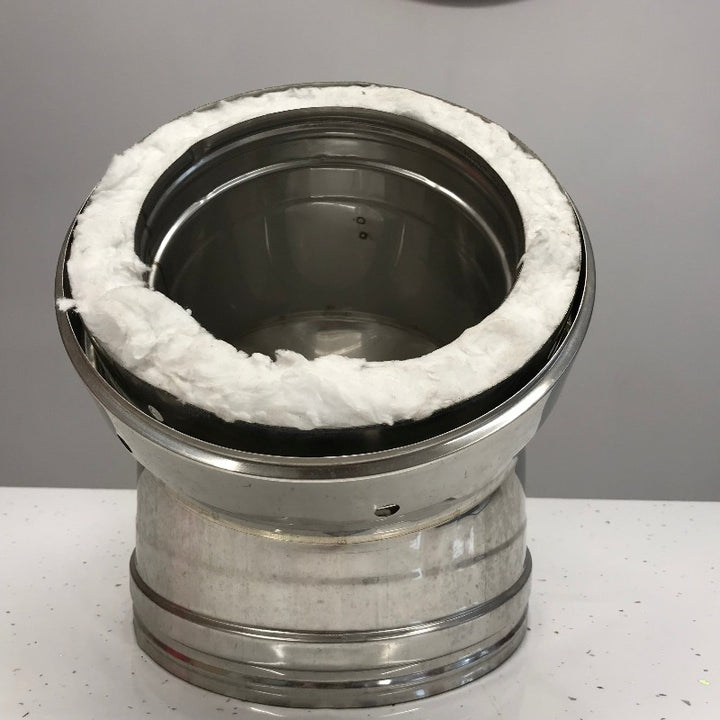

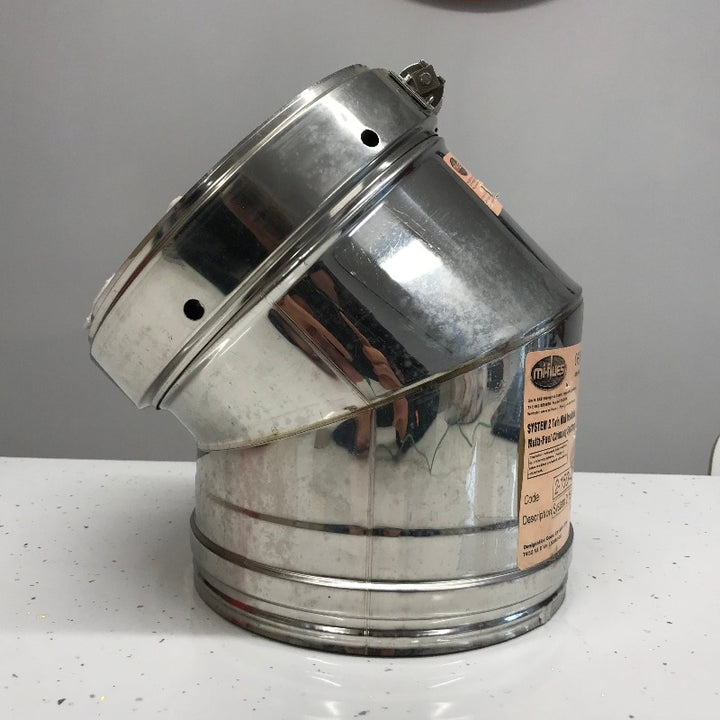

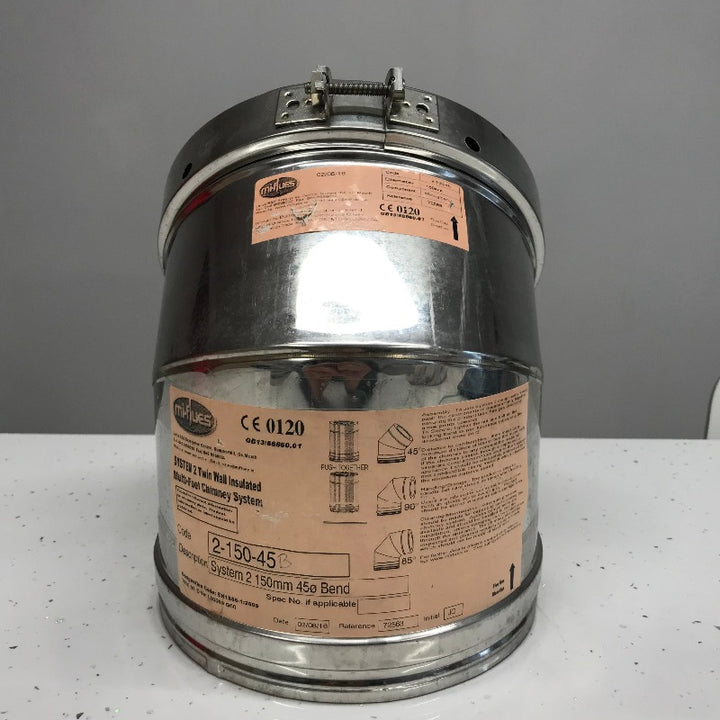

A 45° bend is used to create a change in direction in a flue run. This component is developed in two segments. They are usually used in pairs, the first to create the offset and the second to turn the chimney to its original vertical position. Two by 45° bends can be used to create a 90° bend.
Diameter: 150mm
45 Degree Bend
Mi-Flues System 2 is manufactured from three distinct materials. The combination of the three, yields a product with a high thermal resistance due to the materials used. The design, having almost no thermal bridging between the chimney liner and body, ensures a quick stabilization of flue gas temperatures and the existence of a strong draught. It is constructed from concentric cylinders commonly referred to as the chimney liner and body. The liner of the flue is made from 316L grade stainless steel and is designed to automatically cope with the thermal elongation due to changes in temperature. It also offers excellent resistance against corrosion due to its molybdenum alloy content. The body is made from 304 grade stainless steel which carries the structural load. It has a bright polished finish and is weather proof due to its high quality continuously seam welded finish. The chimney is insulated with a densely packed insulation which results in a low heat conductivity to the outer wall of the chimney.
